Tamiya 1/10 XM-01 Pro Chassis Rally RC Kit 58738
This compact shaft-driven 4WD chassis assembly kit features a front midship motor and transmits power from the spur gear in the center via front and rear propeller shafts. A longitudinal upright battery pack is positioned in the left side, contributing to optimum balance. Changing the rear section allows a choice from three wheelbases. The 4-wheel independent double wishbone suspension has aluminum-cylinder oil dampers. Front caster angle is 5 degrees, and hub carriers and uprights allow two types of ground clearance, while the front bumper skid angle reduces surface contact.
Pro specification level R/C rally driving now comes to our M-Chassis size vehicle offerings!
This shaft-driven 4WD chassis assembly kit (M-chassis size) features three types of wheelbases, new suspension components and a polycarbonate chassis cover. Just pick your favorite Tamiya M-chassis size rally body and you’re ready to take on dirt!
Features
- Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
- Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.

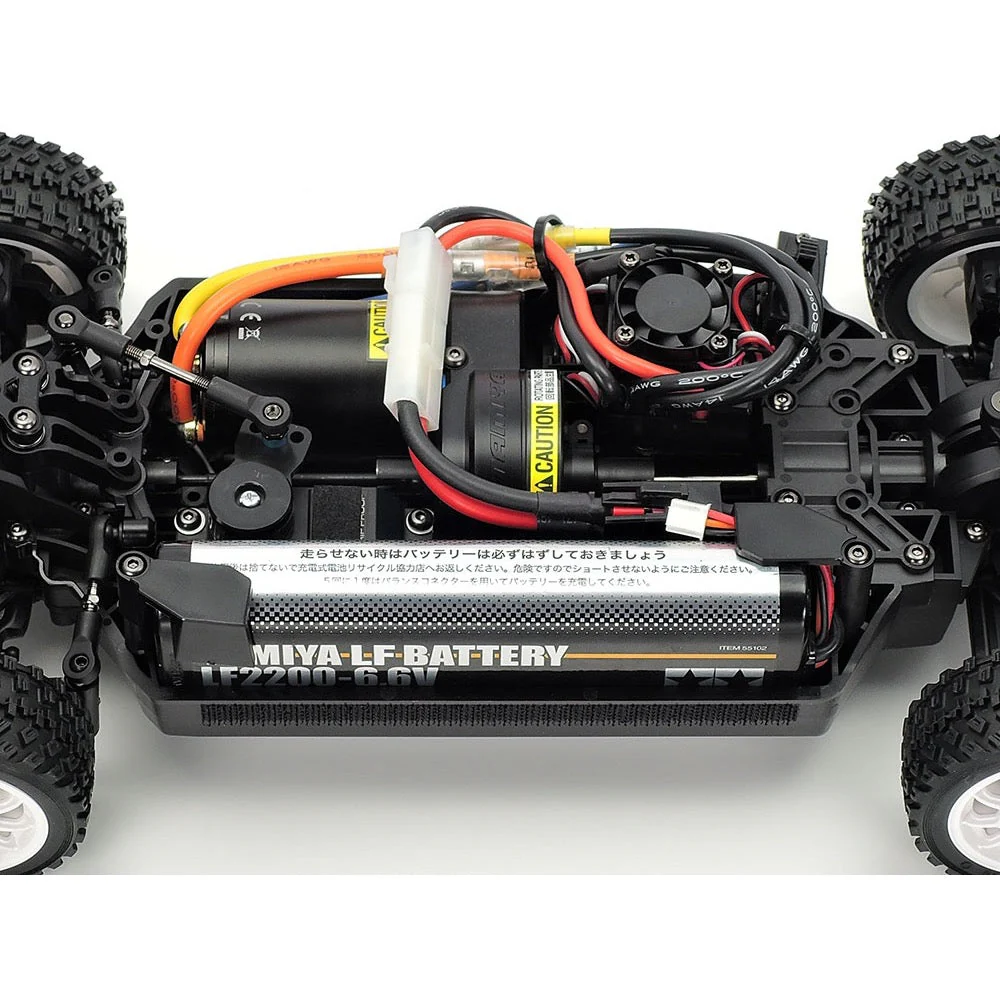

- Features a longitudinal upright battery pack position in the center-left for optimum balance.
- Front bumper with skid angle contributes to reduced surface contact.
- Aluminum dampers included.

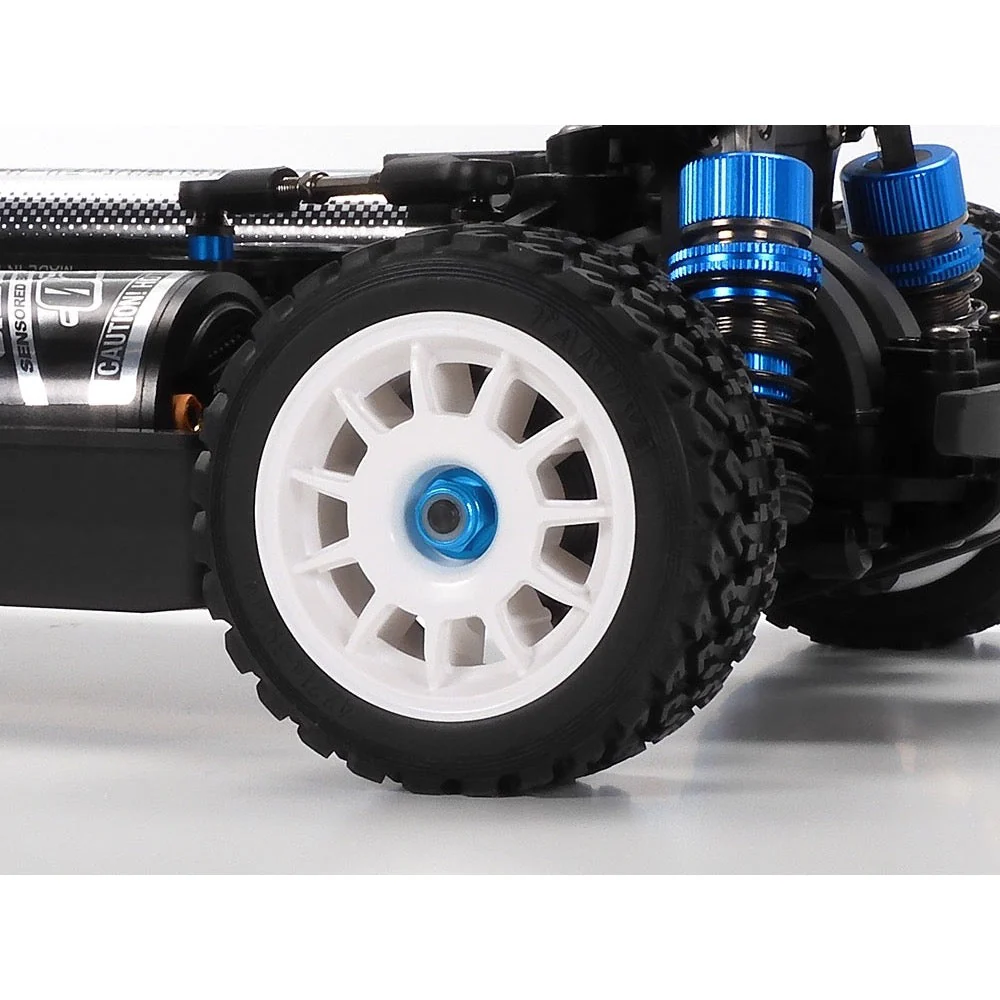

- M-Chassis 11-spoke racing wheels (Item 51394) are paired with 60D rally block tires (Item 51427).
- Front and rear universal drive shafts included for optimum drive efficiency.
- Compatible with center diff setup and separately sold slipper clutch.
- Select Hop-Up Option parts for the XV-02 PRO chassis kit can be used with the XM-01.
- Low-profile servo is recommended. (Standard size servo can be used, but it meets the front inside polycarbonate cover.)
- Required to complete: 2-channel radio, low-profile servo, ESC, 540 size motor, M-chassis size body, 7.2-7.4volt battery with compatible charger.
Featured Components
Drivetrain
- Front & rear oil-filled gear differentials (two 39T and one 40T included)
- Front & rear universal drive shafts
- Full ball bearings

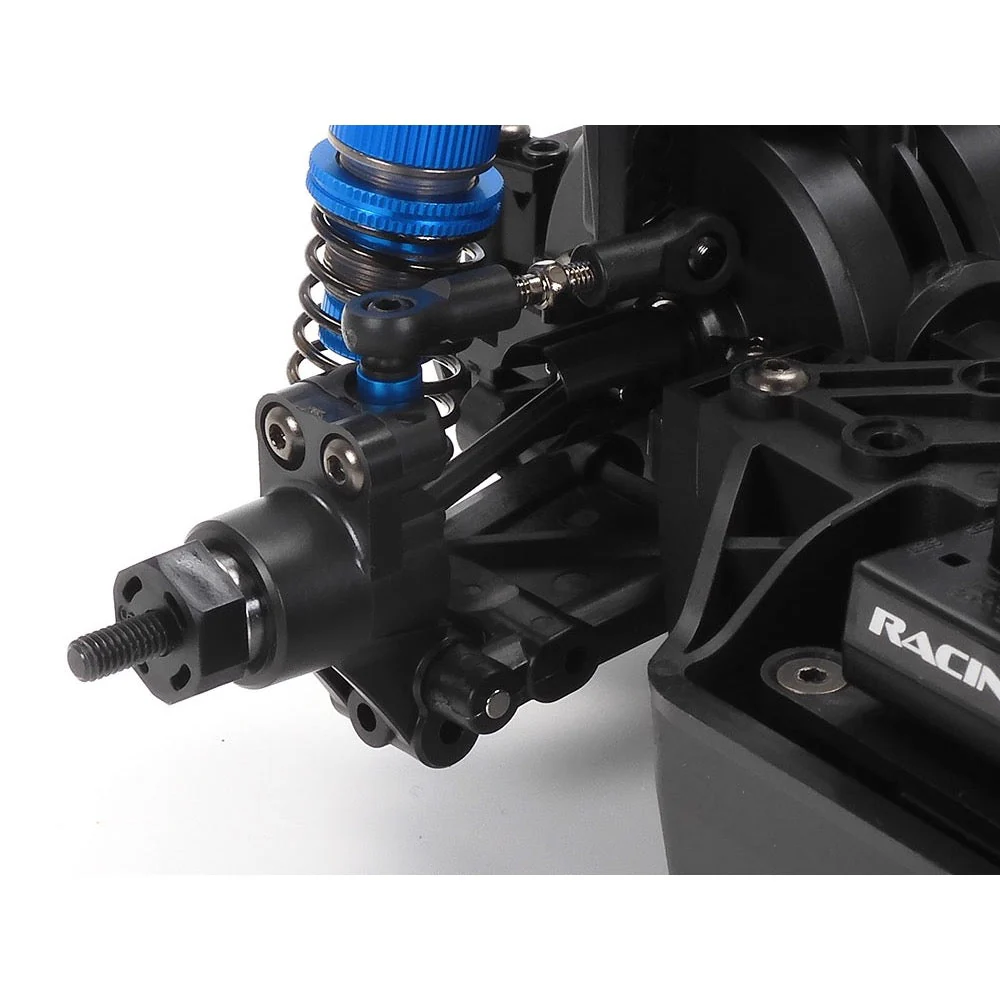

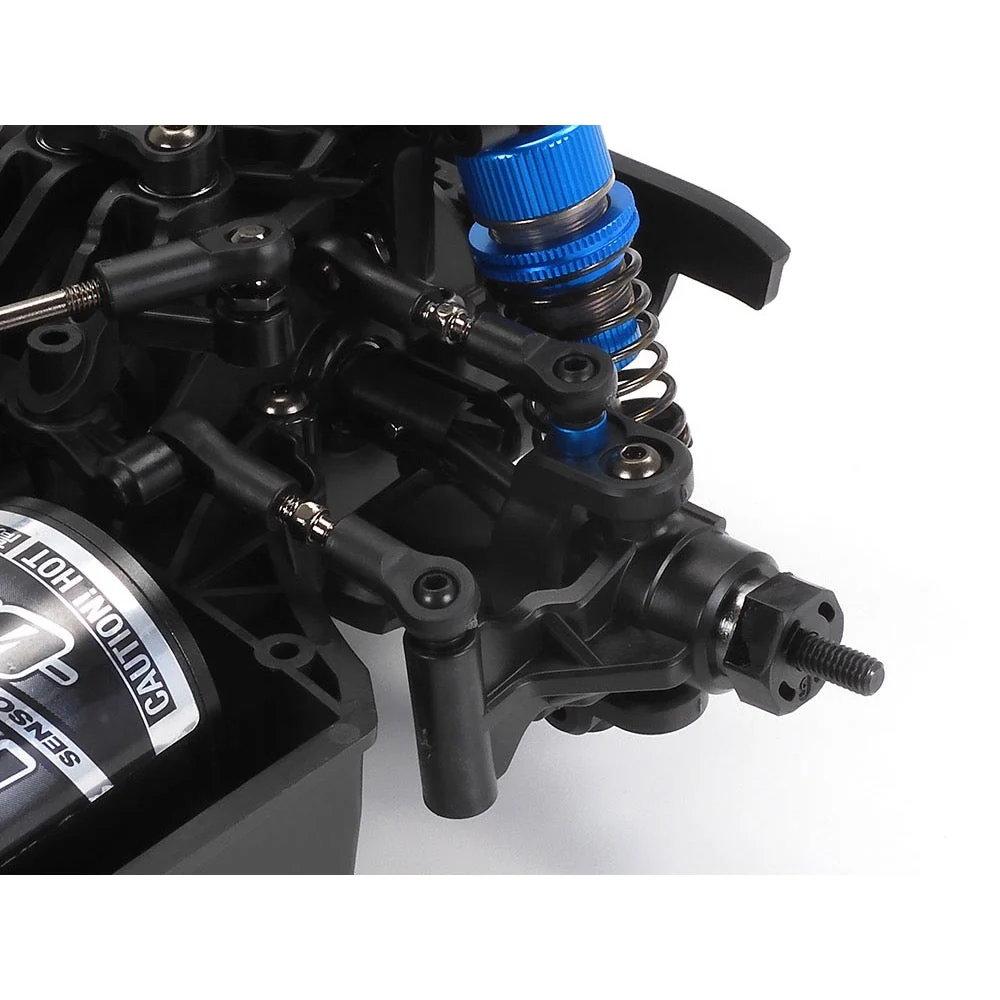

Suspension
- Aluminum oil dampers (blue caps)
- 5-degree caster suspension mounts

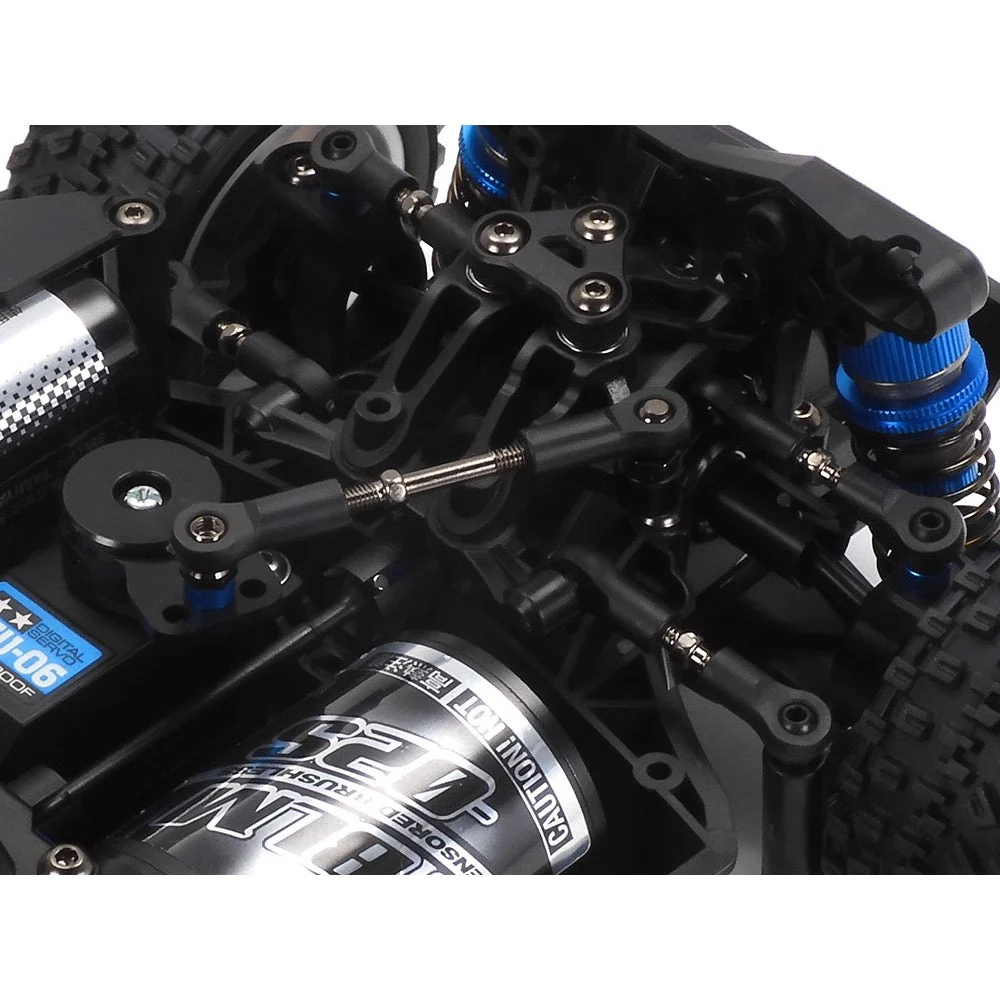

- Turnbuckle upper arms
Chassis
- Polycarbonate chassis cover
- Front bumper with skid angle
- Hi-torque servo saver
Requires
- Body
- Type 540 motor
- 2-channel R/C system
- Battery pack & charger
Original: $283.74
-70%$283.74
$85.12
Description
This compact shaft-driven 4WD chassis assembly kit features a front midship motor and transmits power from the spur gear in the center via front and rear propeller shafts. A longitudinal upright battery pack is positioned in the left side, contributing to optimum balance. Changing the rear section allows a choice from three wheelbases. The 4-wheel independent double wishbone suspension has aluminum-cylinder oil dampers. Front caster angle is 5 degrees, and hub carriers and uprights allow two types of ground clearance, while the front bumper skid angle reduces surface contact.
Pro specification level R/C rally driving now comes to our M-Chassis size vehicle offerings!
This shaft-driven 4WD chassis assembly kit (M-chassis size) features three types of wheelbases, new suspension components and a polycarbonate chassis cover. Just pick your favorite Tamiya M-chassis size rally body and you’re ready to take on dirt!
Features
- Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
- Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.
- Features a longitudinal upright battery pack position in the center-left for optimum balance.
- Front bumper with skid angle contributes to reduced surface contact.
- Aluminum dampers included.
- M-Chassis 11-spoke racing wheels (Item 51394) are paired with 60D rally block tires (Item 51427).
- Front and rear universal drive shafts included for optimum drive efficiency.
- Compatible with center diff setup and separately sold slipper clutch.
- Select Hop-Up Option parts for the XV-02 PRO chassis kit can be used with the XM-01.
- Low-profile servo is recommended. (Standard size servo can be used, but it meets the front inside polycarbonate cover.)
- Required to complete: 2-channel radio, low-profile servo, ESC, 540 size motor, M-chassis size body, 7.2-7.4volt battery with compatible charger.
Featured Components
Drivetrain
- Front & rear oil-filled gear differentials (two 39T and one 40T included)
- Front & rear universal drive shafts
- Full ball bearings
Suspension
- Aluminum oil dampers (blue caps)
- 5-degree caster suspension mounts
- Turnbuckle upper arms
Chassis
- Polycarbonate chassis cover
- Front bumper with skid angle
- Hi-torque servo saver
Requires
- Body
- Type 540 motor
- 2-channel R/C system
- Battery pack & charger
